RatushopArrow Spine Chart

Printable Arrow Spine Worksheet

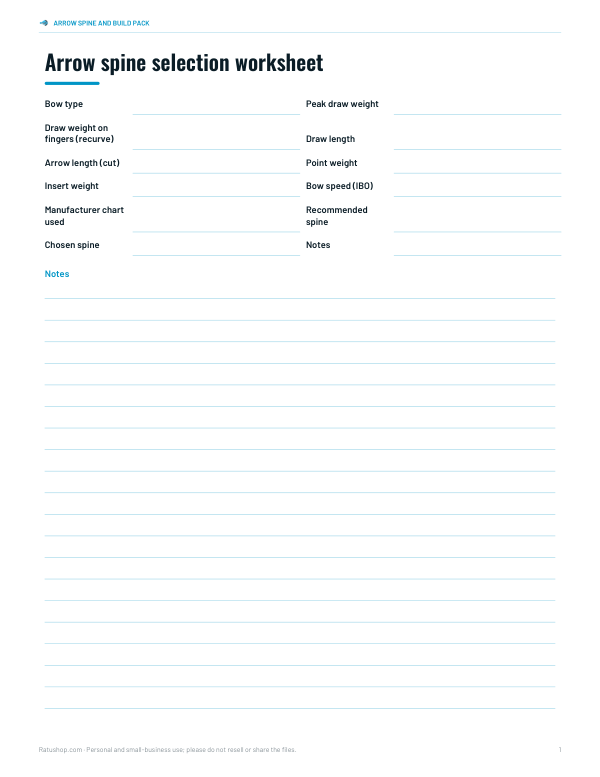

This one-page worksheet is for archers setting up arrow spine for a new build or checking a current setup. It includes fields for bow type, peak draw weight, draw weight on fingers for recurve, draw length, arrow length cut, point weight, insert weight, bow speed IBO, manufacturer chart used, recommended spine, chosen spine, and notes.

Preview of Printable Arrow Spine Worksheet

Free printable · PDF

  • 1 page
  • US Letter — choose “Fit to page” for A4
  • PDF, 59 KB
Download free PDF

Free for personal, family and classroom use.

Need to edit it? The full pack has the editable Word and Excel files plus all 5 sheets — $5.00, one-time.

Fill in your measurements and the chart you used, then compare the recommended spine with the spine you choose to buy or test. Keep the sheet with your setup notes so you can track changes to draw weight, arrow length, point weight, or inserts later.

Good for

Tip: Print at actual size and keep it with your tuning notes for quick comparison.

5 files · PDF, DOCX, XLSX

Get every sheet: Arrow Spine and Build Pack

This sheet plus 4 more in one download, with the editable Word and Excel files. Arrow spine selection worksheet, Excel arrow build calculator (weight, FOC, kinetic energy, momentum), printable build sheet, tuning log and a blank spine chart template.

$5.00 USD, one-time 5 files · about $1.00 each

7-day money-back guarantee. Full refund within 7 days of purchase, even after you download.
